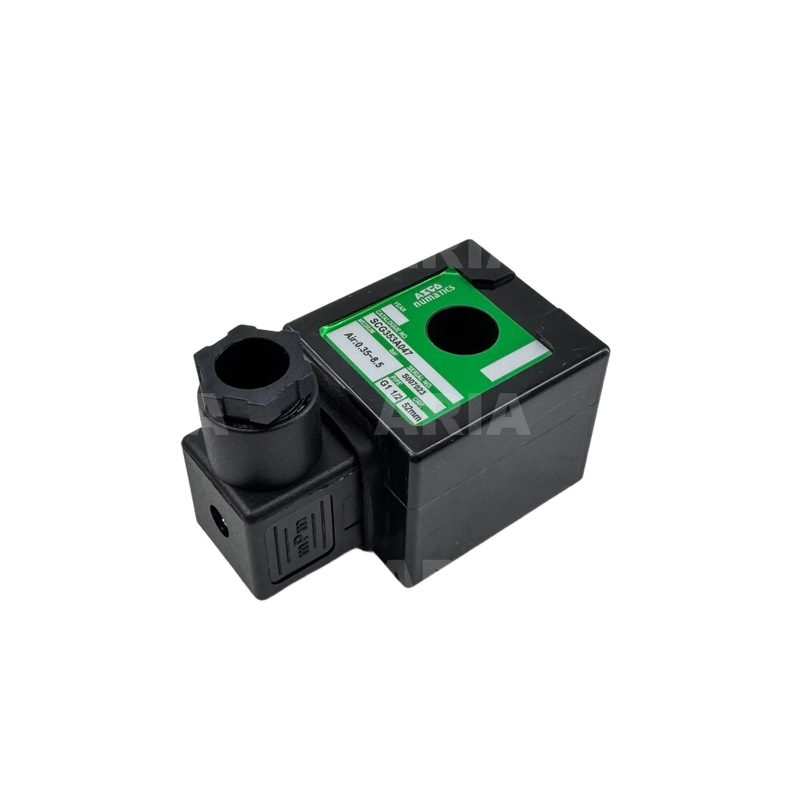

400425-117 AC220V Solenoid Valve Coil ASCO Molded Shell IP65 Pulse Valve Coil

Product Description:

Features:

The ASCO Pulse Valve Coil is an original product from the United States, renowned for its high quality and compliance with IEC 335 electrical safety standards. This ensures a reliable and safe performance suitable for various industrial applications.

This coil is part of the 400425 and 400325 product series, designed specifically to control the start and stop functions of pulse valves. It effectively enables media on-off operation and pulse jet control, meeting the precise control requirements of equipment such as pulse dust removal systems.

With an insulation class of F (155℃), the coil offers excellent insulation performance that prevents leakage hazards, thereby guaranteeing the safe operation of equipment. Its molded shell provides an IP65 protection level, making it waterproof and dustproof. This design is ideal for harsh industrial environments, protecting the coil from damage caused by dust and water vapor.

The ASCO Pulse Valve Coil operates reliably within a wide temperature range from -40℃ to +60℃ (-40°F to 140°F). Its electrical interface features a flat plug compatible with cables of 6-8mm diameter, conforming to the DIN 46244 standard. This ensures convenient wiring and stable, reliable electrical contact.

Durability is a key attribute of this coil, as it utilizes high-quality coil windings and sealing materials that are resistant to wear and loss. This results in a long service life, minimizing maintenance and reducing the frequency of replacements. Installation is straightforward and user-friendly, compatible with corresponding ASCO series pulse valves without the need for complex adjustments. The coil can be installed in any position without impacting operational performance.

Widely applicable across multiple industries, the ASCO Pulse Valve Coil is used in environmental protection dust removal systems such as pulse jet dust removal, as well as chemical fluid control, metallurgy, rubber manufacturing, flour processing, pharmaceuticals, carbon production, building materials, and mining. It is especially suited for local dust source removal and various fluid control equipment, offering versatility and excellent performance in demanding conditions.

Technical Parameters:

Applications:

Before installation, please verify that the coil model and its rated voltage match the pulse valve model as well as the equipment's voltage requirements. This step is crucial to prevent issues such as coil burnout or equipment malfunction caused by voltage mismatches.

During installation, ensure that all wiring connections are secure to avoid poor contact. Additionally, proper insulation protection must be applied to prevent safety risks like leakage or short circuits. All wiring should adhere strictly to electrical safety standards.

When the coil is in use, avoid exposing it to high temperatures, excessive humidity, or dusty environments for extended periods. Regularly clean the dust off the coil surface to help prolong its service life. If operating conditions are particularly harsh, consider adding extra protective measures.

If the coil exhibits any abnormal behavior such as malfunctioning, unusual heating, or strange noises, immediately disconnect the power supply to inspect the issue and prevent potential damage to your equipment. It is advisable to replace the coil only with an original part of the same model and avoid using unauthorized substitutes.

For storage, keep the coil in a dry, well-ventilated, and cool environment. Avoid exposure to direct sunlight, rain, or any mechanical pressure that could cause dampness, deformation, or damage to the coil.

Packing and Shipping:

Product Packaging:

The ASCO Solenoid Valve is carefully packaged to ensure maximum protection during transportation. Each valve is individually sealed in a protective plastic bag to prevent moisture and dust ingress, then placed in a custom-fitted foam insert to avoid movement and impact damage. The foam insert and valve are enclosed within a sturdy corrugated cardboard box, labeled with product specifications and handling instructions. Multiple units are securely packed in an outer carton for bulk shipments, with clear markings for easy identification and inventory management.

Shipping:

ASCO Solenoid Valves are shipped using reliable carriers that provide tracking and timely delivery services. Shipping options include standard ground, expedited air freight, and international shipping to accommodate customer requirements. All shipments comply with applicable regulations for hazardous materials, if any, and are accompanied by necessary documentation such as packing lists and certificates of conformity. Care is taken to ensure the valves arrive in optimal condition, ready for immediate installation and use.
