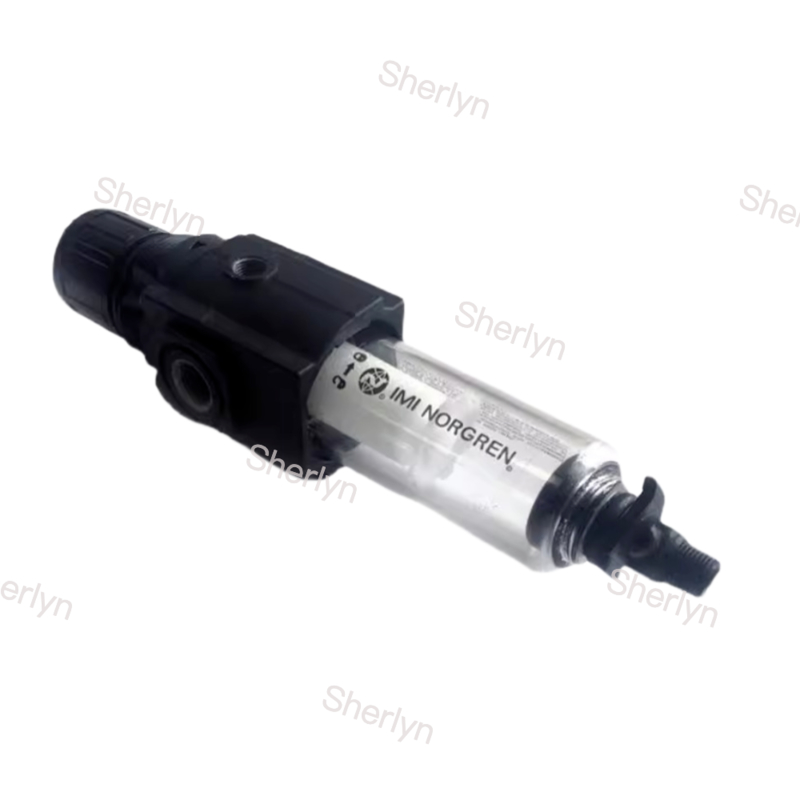

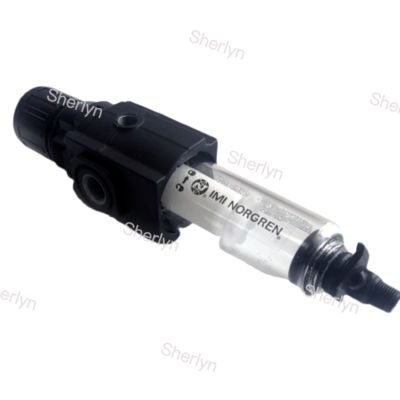

B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN

B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN

  • B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN
  • B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN
  • B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN
  • B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN
B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN
Thông tin chi tiết sản phẩm:
Hàng hiệu: Norgren
Chứng nhận: CE
Số mô hình: B72G-2GK-QT1-RMN
Tài liệu: B72G_IM.pdf
Thanh toán:
Minimum Order Quantity: 1
Giá bán: Có thể đàm phán
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Điều khoản thanh toán: T/T, Liên minh phương Tây, PayPal
Supply Ability: 5000PCs Per Month
Tiếp xúc
Chi tiết sản phẩm
Vật liệu bát: Polycarbonate Trung bình: Không khí nén
Kích thước cổng: G1/4 Loại thoát nước: Tự động xả
Phạm vi: B72G Điều chỉnh áp suất đầu ra: 0,3 ... 10 thanh, 4 ... 145 psi
Làm nổi bật:

Norgren filter pressure regulating valve

,

pneumatic filter regulator lubricator

,

B72G pressure regulating valve

Medium Compressed air
Operating Temperature -34 ... 50 °C, 29 ... 122 °F
Port Size G1/4
Drain Type Manual
Gauge Port Rc1/8
Filter Element 5 μm
Adjustment Knob
Maximum Inlet Pressure 10 bar, 145 psi
Outlet Pressure Adjustment 0.3 ... 10 bar, 4 ... 145 psi
Relieving / Non Relieving Relieving
Flow 38 dm3/sec, 81 scfm
Materials - Adjusting Knob Acetal

Medium Compressed air
Operating Temperature -34 ... 50 °C, 29 ... 122 °F
Port Size G1/4
Drain Type Manual
Gauge Port Rc1/8
Filter Element 5 μm
Adjustment Knob
Maximum Inlet Pressure 10 bar, 145 psi
Outlet Pressure Adjustment 0.3 ... 10 bar, 4 ... 145 psi
Relieving / Non Relieving Relieving
Flow 38 dm3/sec, 81 scfm
Materials - Adjusting Knob Acetal

Product Description:

NORGREN F18 Series Filters

The NORGREN F18 series filters are specifically designed for compressed air and neutral gases. They effectively remove liquid water and solid impurities from the media. Below are the core features and details of these filters:

  • Efficient Water Removal and Impurity Filtration: The filter can quickly and finely filter out impurities in the liquid and gas, ensuring cleanliness and quiet operation.
  • Automatic Drainage Function: Equipped with an automatic drain with 1/8-27 and 1/8-28 male pipe threads connection ports. Ensure the inner diameter of the flexible pipe connecting the drain is not less than 3/16 inch (about 5 millimeters) to avoid affecting normal drain operation.
  • Humanized Observation Design: Features a high visibility prism liquid level indicator lens for intuitive observation of the liquid level inside the filter cup, helping users understand drainage needs promptly.
  • Durable and Sturdy Material: Main components are made of aluminum body, the filter cup is made of transparent nylon metal bowl, which provides observation convenience and structural strength. The filter element is sintered bronze, and the sealing material is chloroprene/NET elastomer, ensuring product stability and durability during long-term use.

Applications:

Thanks to its reliable filtering performance, the NORGREN F18 series filters are suitable for many occasions that require clean compressed air.

Widely applicable fields: NORGREN's products are used in key areas such as factory automation, material handling, railways, energy, process control, and life sciences. Although these materials do not explicitly point to the F18 series, they can serve as a reference for its potential application scope.

Core function assurance system: Its main task is to remove liquid water and solid impurities from compressed air or gas, which is crucial for protecting downstream pneumatic equipment (such as cylinders, solenoid valves, etc.) and can effectively improve equipment service life and system reliability.

B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN 0

B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN 1

B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN 2

B72G-2GK-QT1-RMN Filter Pressure Regulating Valve NORGREN 3


Support and Services:

The Pneumatic Filter Regulator Lubricator product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to provide guidance on installation, maintenance, troubleshooting, and any technical queries you may have.


Packing and Shipping:

Product Name: Pneumatic Filter Regulator Lubricator

Description: This pneumatic filter regulator lubricator is designed to ensure optimal performance of your pneumatic tools and equipment by filtering out impurities, regulating air pressure, and providing lubrication as needed.

Packaging: The product comes securely packaged in a durable cardboard box with foam inserts to prevent damage during transit.

Shipping: We offer fast and reliable shipping services to ensure that your pneumatic filter regulator lubricator reaches you in a timely manner. All orders are carefully packed and dispatched to minimize the risk of damage during transit.
