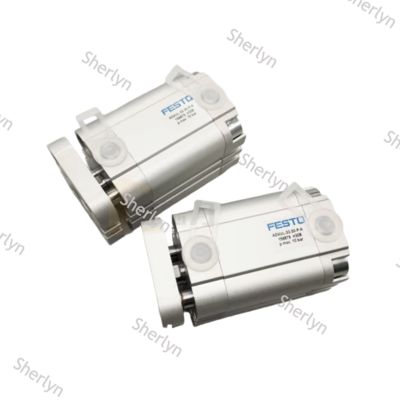

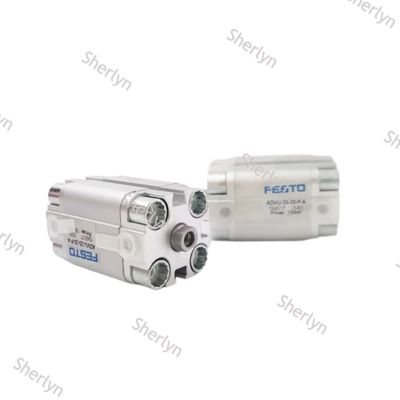

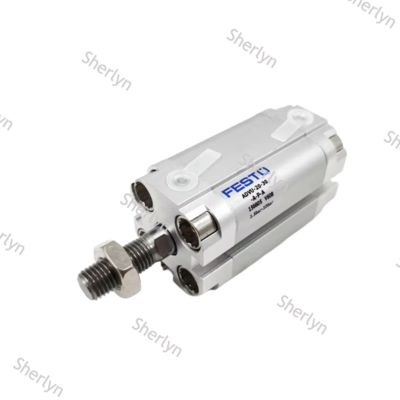

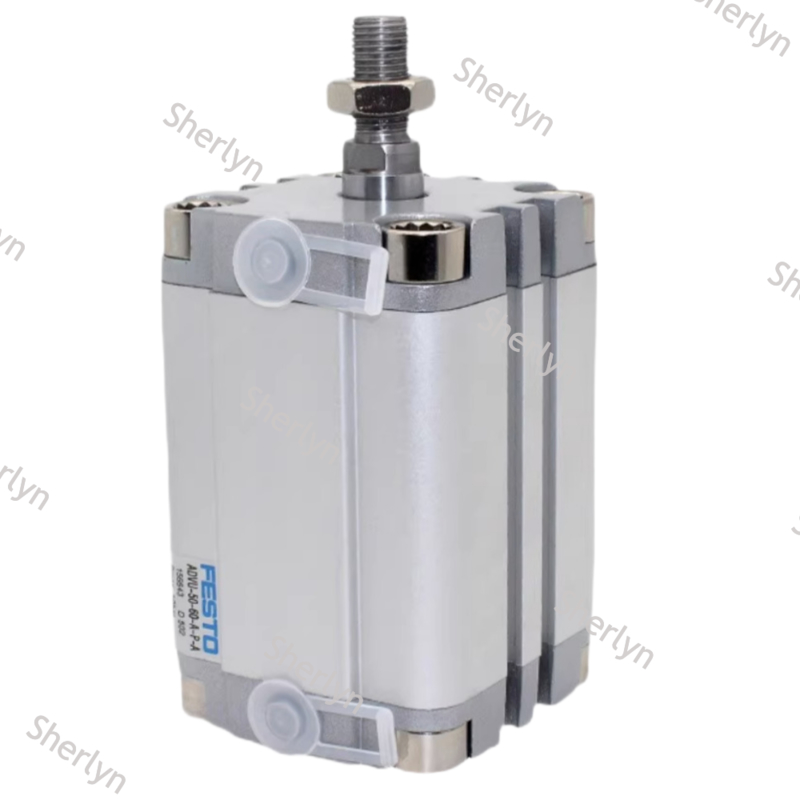

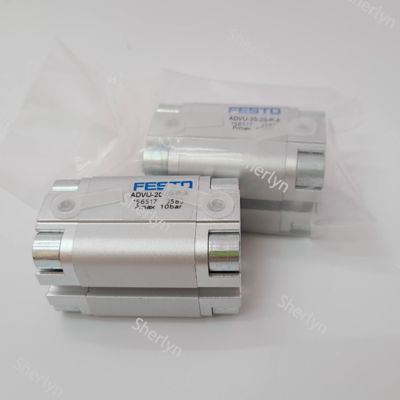

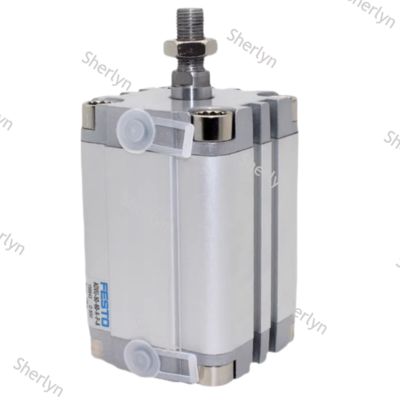

ADVU Series Piston Pneumatic Cylinder ADVU-12-5-A-P-A 156586 Festo Cylinder

Product Description:

The ADVU series is a compact short stroke cylinder launched by Festo, designed to cover various working forms including double acting (ADVU) and single acting (AEVU, AEVUZ).

Double Acting Cylinder (ADVU): This cylinder controls the extension and retraction of the piston rod using compressed air. It features a piston diameter range from 12 mm to 125 mm and a wide stroke range. The standard stroke is 5 to 80 mm, with some models offering a stroke range of 1 to 400 mm.

Single Acting Cylinder: This type includes push type (AEVU) and pull type (AEVUZ) cylinders. The piston diameter ranges from 12 to 100 mm, with typical stroke options of 5 to 25 mm or 1 to 25 mm.

Compact Structure and Standardization: The ADVU series cylinders sport a simple appearance, smooth surface, and compact structure. Some models adhere to international standards such as ISO 6432 (e.g., ADVU-32-10-P-A) or VDMA, ensuring good interchangeability and compatibility.

Buffer and Sensing Functions:

• Buffer Design: Each cylinder is usually equipped with elastic buffer rings or pads (often labeled as "P" in the model) at both ends, which effectively absorb motion impact energy, reduce vibration and noise, and extend the service life.
• Position Sensing: Many models support non-contact position sensing (often labeled as "A" in the model), making it easy to install proximity sensors (e.g., inductive sensors SM... -8) for precise detection and control of piston position.

Applications:

The Festo ADVU series cylinders have a wide range of applications in the following fields due to their compact structure, reliable performance, and flexible configurability:

• General automation equipment: widely used in various automation control systems and pneumatic equipment.
• Automotive manufacturing and assembly: used for clamping and positioning in welding, handling, pressing and other processes (such as the example model ADVU-32-10-P-A used for positioning).
• In the electronics and semiconductor industry: where high cleanliness and precision are required for chip grinding, spot welding machines (such as the example model ADVU-32-40-P-A used for spot welding machines), circuit board assembly, etc., its compact design and optional stainless steel material can meet the needs.
• Food and beverage packaging machinery: commonly used for pushing, measuring, and packaging actions in filling lines, packing machines, labeling machines (such as the example model ADVU-32-10-P-A used for labeling), and other equipment.
• Medical and laboratory equipment: Its compactness and reliability are also suitable for fields that require precise control, such as medical equipment and the biotechnology industry (such as the example model ADVU-20-15-P-A applied in the medical and health field).
• Other industrial fields: also applied in many fields such as metal processing (such as stamping), printing equipment, material handling, etc.

Support and Services:

Our company offers comprehensive product technical support and services for the Piston Pneumatic Cylinder. Our team of experts is dedicated to assisting you with any inquiries you may have regarding the product's operation, maintenance, or troubleshooting.

Our technical support includes guidance on installation procedures, performance optimization, and troubleshooting common issues that may arise during operation. Additionally, we provide product training to ensure that you are well-equipped to utilize the Piston Pneumatic Cylinder effectively.

Our services also encompass maintenance and repair assistance to help you prolong the product's lifespan and maintain its optimal performance. We are committed to ensuring your satisfaction with our Piston Pneumatic Cylinder product through reliable technical support and services.

Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-quality piston pneumatic cylinder for industrial applications.

Package Includes: 1 x Piston Pneumatic Cylinder

Shipping Information: This product will be securely packaged and shipped via standard shipping within 1-3 business days.
