Taeha 1.5-inch MD01-40 MD02-40 MD03-40 pulse valve diaphragm TH5840 TH5440

Product Description:

Taeha Diaphragm Overview

The Taeha diaphragm serves as the central component of an electromagnetic pulse valve, playing a critical role in determining the operational efficiency and longevity of the pulse valve. Its key features include:

• Durability and Long Life: The Taeha diaphragm is renowned for its durability, capable of enduring extensive usage. For instance, the standard temperature diaphragm has a lifespan of over 1 million cycles when operating within an ambient temperature range of -30°C to 90°C and a working pressure difference of 0.8MPa. Similarly, the high-temperature variant can last for at least 1 million cycles under the same pressure conditions at temperatures between 150°C and 200°C. This extended operational lifespan allows for stable performance over time, reducing the need for frequent replacements and maintenance expenses.
• Materials and Processes: Typically crafted from special composite materials like high-quality nylon and synthetic rubber blends, the Taeha diaphragm boasts superior mechanical strength, elasticity, and fatigue resistance. The fabric clamp is usually positioned at the center of the diaphragm, while the surface is meticulously crafted to be smooth, flat, and devoid of imperfections such as cracks and bubbles. Moreover, the Shore hardness can be adjusted within a range of 50 to 80 degrees to cater to diverse customer requirements.
• Reliable Sealing: A high-quality Taeha diaphragm offers reliable sealing capabilities for pulse valves, effectively preventing compressed air leaks. This ensures optimal dust cleaning performance, ultimately leading to reduced energy consumption.

Applications:

Taeha membrane is a crucial component utilized in pulse cleaning systems within the industrial dust removal sector. It serves as a key element for the proper functioning of pulse valves.

In the field of bag filter dust cleaning systems, Taeha membrane finds its core application. It is extensively employed in industries requiring effective dust control, such as cement, steel, metallurgy, chemical industry, power generation, waste incineration, and more. Within the bag filter setup, the pulse valve, controlled by a controller, utilizes compressed air to clean the filter bag by dislodging accumulated dust. The membrane's role is pivotal in swiftly opening and closing the air pathway, with its precision and reliability directly impacting the efficiency of dust cleaning and the operational resistance of the dust collector.

When it comes to material recycling and pneumatic conveying in industries like pharmaceuticals, food processing, and pigment production, Taeha membrane-equipped pulse valves can be implemented in associated dust removal equipment. This application aids in the recycling of valuable raw materials or maintaining a hygienic production environment free from contaminants.

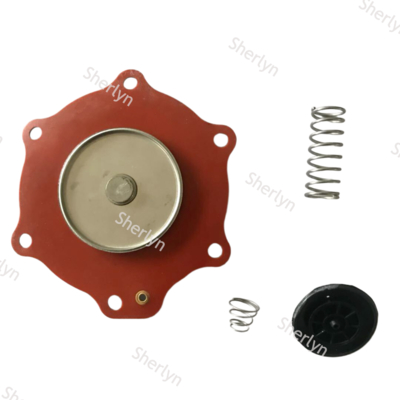

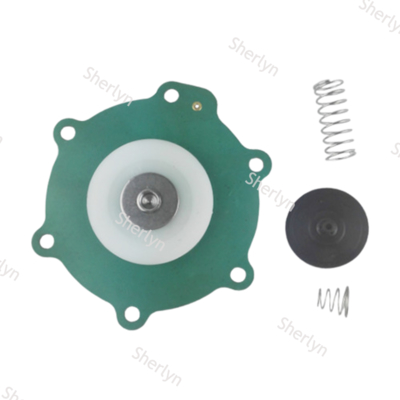

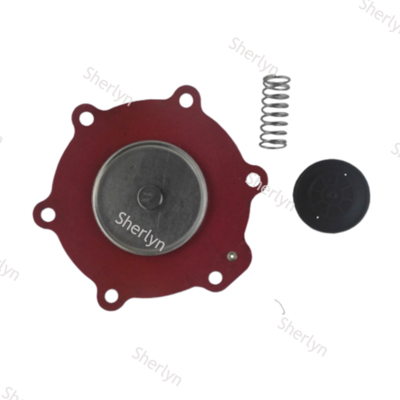

MD01-40 MD02-40 MD03-40 Diaphragm For Taeha Pulse Solenoid Valve

MD01-40, MD02-40, MD03-40 Diaphragm (Membrane) for Taeha pulse valve TH-5840-B, TH-5440-B, TH-4840-B, TH-4440-B, TH-5840-C, TH-5440-C, TH-4840-C, TH-4440-C, TH-5850-F, TH-5450-F, TH-4850-F, TH-4450-F; Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Support and Services:

Our Product Technical Support and Services for the Pulse Valve Diaphragm product include expert troubleshooting assistance, comprehensive product information, and guidance on installation and maintenance.

We are committed to providing high-quality support to ensure optimal performance and longevity of your Pulse Valve Diaphragm. Our team of technical specialists is available to answer any questions and address any issues you may encounter with the product.
