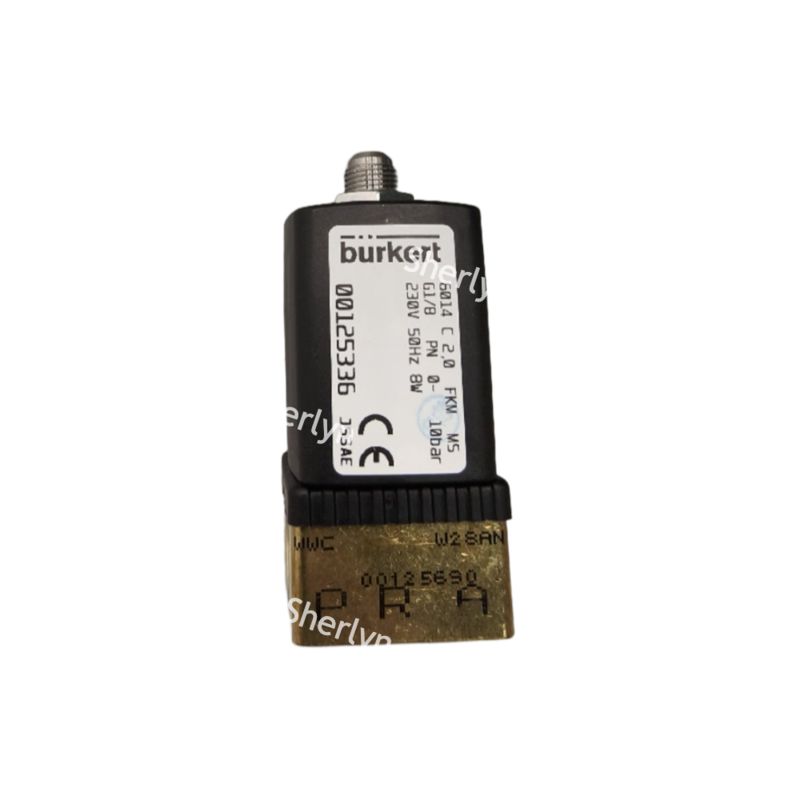

BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V

BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V

  • BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V
  • BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V
  • BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V
  • BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V
  • BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V
BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V
Thông tin chi tiết sản phẩm:
Hàng hiệu: BURKERT
Chứng nhận: CE
Số mô hình: 00125336
Thanh toán:
Minimum Order Quantity: 1
Giá bán: Có thể đàm phán
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Điều khoản thanh toán: T/T, Liên minh phương Tây, PayPal
Supply Ability: 5000 Pieces/1Month
Tiếp xúc
Chi tiết sản phẩm
Brand name: BURKERT Thân hình: Thau
Loạt: 6014 Kiểu: 3/2
Kích thước kết nối: 1/8in Nhiệt độ hoạt động tối đa: +55°C
Làm nổi bật:

Burkert solenoid valve G ¼ port

,

Burkert 6014 series industrial valve

,

G ¼ port connection solenoid valve

Product Description:

The Burkert 6014 series solenoid valve features a compact structure, excellent pressure sealing, shock resistance, energy efficiency with a pulse coil, and the option for manual operation. The stopper and plunger tube are welded together to enhance pressure resistance and sealing performance.

Working principle: The valve adopts a direct acting design where the plunger is driven by electromagnetic force to open and close.

Valve function: The primary function of the valve is two position three-way (2/3-way), offering various options such as normally closed (NC), normally open (NO), and universal functions to accommodate different circuit requirements.

Interface size: The valve comes with common threaded interfaces including G ₁/₈", G ₁/₄", and NPT or Rc specifications ranging from 1/8" to 3/8". This series of valves supports bottom plate installation (manifold installation), making it convenient for combination and integration, ultimately saving space.

Sealing material: The primary sealing material used is FKM (fluororubber), which possesses excellent chemical resistance and high-temperature resistance.


Applications:

Pneumatic Control

Used to control the direction of action of small cylinders, vacuum suction cups, pneumatic grippers, and other actuating components. The function of its two three-way (2/3-way) is an ideal choice for forming pneumatic circuits, with fast response speed and the ability to meet the rhythm requirements of automation equipment.

Medical and laboratory equipment

Widely used in analytical instruments, diagnostic equipment, ventilators, dental equipment, and various experimental reaction devices, it is used to control the flow of liquid reagents, the on-off or sampling of gases. Its stainless steel material and good sealing meet the requirements for cleanliness and chemical resistance.

Filling and metering system

Suitable for quantitative addition, batching, and filling of small liquids or gases, such as precise control of small flow rates in the food and beverage, chemical industries. The direct acting design provides fast and precise control.

Cooling and lubrication system

In mechanical equipment, it is used to control the on/off of coolant, lubricating oil, or compressed air, providing timely cooling and lubrication for components such as spindles and cutting tools.

Welding equipment

Used to control the pathway of protective gases (such as inert gases) in welding machines to ensure welding quality.

General industrial automation

Commonly used in automation scenarios such as packaging machinery, material sorting, assembly lines, etc., to perform various simple fluid control tasks.

BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V 0

BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V 1

BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V 2

BURKERT 00125336 6014 Series C Normally Closed G1/8 2.0 Flow Hole AC220V 3


Support and Services:

Burkert Solenoid Valves offer comprehensive product technical support and services to ensure optimal performance and reliability. Our team of experts is dedicated to assisting customers with installation, troubleshooting, and maintenance to maximize the lifespan of your valve. We provide detailed product documentation, technical specifications, and training resources to support your needs. Additionally, our service team is available for on-site support and repairs to minimize downtime and ensure continuous operation of your system.


Packing and Shipping:

Product Packaging:

The Burkert Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure maximum protection during transit. The valve is securely placed in the box with ample cushioning material to prevent any damage.

Shipping:

We offer fast and reliable shipping options for the Burkert Solenoid Valve. Once your order is placed, our team will carefully pack and prepare your valve for shipment. You can choose from various shipping methods to suit your needs, and we will provide you with a tracking number so you can monitor the delivery status of your package.
