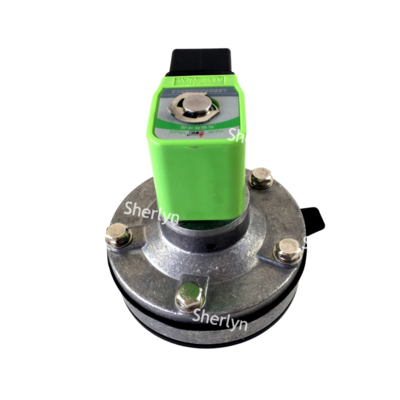

Name: DMF-Y-25 1'' BFEC Embedded Dust Collector Pulse Valve 24V DC 220V AC
Brand: YW DKE TRADING COMPANY
SKU: DMF-Y-25
Availability: InStock

Nhà Sản phẩm Van phun xung

DMF-Y-25 1'' BFEC Embedded Dust Collector Pulse Valve 24V DC 220V AC

Thông tin chi tiết sản phẩm:

Hàng hiệu:	BFEC
Chứng nhận:	CE
Model Number:	DMF-Y-25

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Có thể đàm phán
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	5000 Pieces/1Month

Tiếp xúc

Chi tiết sản phẩm

Diaphragm Material:	NBR (Buna)	Port Size:	1''
Valve Type:	Right Angle (Threaded)	Working Pressure Range:	0.1 To 0.8MPa
Product Name:	BFEC Pulse Jet Valve	Flanged Pulse Jet Valve:	DMF-ZF-25, DMF-ZF-40S

Detailed Product Description

Product Name:	DMF-Y-25 Pulse Jet Valve	Remote Or Integral Pilot:	Integral Pilot
Outlet Pipe Size:	1''	Structure:	Diaphragm
Diaphragm Material:	NBR (Buna)	Right Angle Pulse Jet Valve:	DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
Quick Mount Pulse Jet Valve:	DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B	Embedded/Immersion Pulse Jet Valve:	DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE
Flanged Pulse Jet Valve:	DMF-ZF-25, DMF-ZF-40S	Straight Through Pulse Jet Valve:	DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S
Working Pressure Range:	0.1 To 0.8MPa	Voltage:	24VDC, 220VAC
Highlight:	BFEC Embedded Pulse Valve , 220V AC Pulse Valve , SBFEC Type DMF-Y-25

Product Description:

The DMF series is categorized into three different installation structures to accommodate various working conditions:

Right angle (DMF-Z)
The inlet and outlet angles are 90 degrees, featuring a compact structure that saves space by up to 5 units.
Typical model: DMF-Z-25/40S, suitable for high dust environments in steel and cement plants.
Advantages: Easy installation with direct connection between the airbag and spray pipe.

Direct type (DMF-T)
The inlet and outlet angles are 180 degrees with low airflow resistance, suitable for small and medium-sized dust removal units.
Typical model: DMF-T-20 (diameter 20mm), ideal for dust collection in wood processing and food industries.
Parameters: Working pressure of 0.4~0.7MPa, diaphragm life exceeding 1 million cycles.

Submerged (DMF-Y)
A popular model with the valve body embedded in the airbag installation, offering high circulation efficiency for low-pressure gas source scenarios.
Typical models:
- DMF-Y-80 (3.5 inches): Provides extensive spray coverage for enhanced dust removal efficiency.
- DMF-Y-102SA: Features a 3-inch valve body producing a 4-inch injection effect, increasing injection volume by 45% compared to traditional 3-inch valves.
- DMF-Y-76S/90S: Designed with a large diameter range (76mm to 102mm), suitable for large-scale systems like cement kiln tail and waste incineration.

Applications:

Industrial dust removal system

Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.

Cement manufacturing: kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).

Garbage incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.

Wood processing/food chemical industry: sawdust or powder pneumatic conveying scenarios, suitable for straight through valves (DMF-T series), requiring oil-free dry air (oil content < 5ppm).

Auxiliary system

Bunker arch breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.

Pneumatic conveying blockage removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food-grade calcium carbonate).

DMF-Y-25 1'' BFEC Embedded Dust Collector Pulse Valve 24V DC 220V AC 0

DMF-Y-25 1'' BFEC Embedded Dust Collector Pulse Valve 24V DC 220V AC 1

DMF-Y-25 1'' BFEC Embedded Dust Collector Pulse Valve 24V DC 220V AC 2

DMF-Y-25 1'' BFEC Embedded Dust Collector Pulse Valve 24V DC 220V AC 3

Technical data of DMF Series Embedded Pulse Jet Valve:

Model number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Port sizes	G1''	G1 1/2''	G2''	G2 1/2''	G3''	G4''
Membrane sizes	φ96	φ112	φ160	φ188	φ202	φ255
(φ66 smaller)
CV values	30.53	53.47	71.47	150.85	186.66	313.09
Blowing area	8月10日	12月16日	18-28	27-38	37-65	70-90
(m2)
Weight	0.75	1.2	2.35	3.2	4.05	5.65
(kg)
Environment Temperature	-25℃ to +80℃ or customized
Relative Humidity	≤85%
Working Medium	Clean Air
Protection Class	IP65
Service Life	Over one million times
Voltage	DC24V, AC24V, AC110V, AC220V

Support and Services:

Our Product Technical Support team for Pulse Jet Valves is dedicated to assisting customers with any technical inquiries or issues related to the product. Our support staff is knowledgeable and ready to provide expert advice and guidance to ensure that our customers can effectively use and maintain their Pulse Jet Valves.

In addition to technical support, we also offer a range of services for Pulse Jet Valves, including installation assistance, maintenance programs, and training sessions. Our goal is to help customers get the most out of their products and maximize their performance and lifespan.
