Name: C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories
Brand: YW DKE TRADING COMPANY
SKU: C113686
Availability: InStock

Nhà Sản phẩm Màng van xung

C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories

Thông tin chi tiết sản phẩm:

Hàng hiệu:	ASCO
Chứng nhận:	CE
Model Number:	C113686

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Có thể đàm phán
Packaging Details:	Carton
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	5000 Pieces/1Month

Tiếp xúc

Chi tiết sản phẩm

Diaphragm Materia:	Nitrile, Viton	Size:	2'', 2 1/2''
Ordering Code:	C113685, C113686, C113-685, C113-686	Product Name:	Pulse Valve Diaphragm
Brand name:	ASCO	Fitted Pulse Valve Model:	SCG353A050, SCG353A051
Làm nổi bật:	ASCO pulse valve diaphragm repair kit , 2.5-inch dust collector diaphragm , SCG353A051 pulse valve accessories

Detailed Product Description

Product Name:	Pulse Valve Diaphragm	Ordering Code:	C113685, C113686, C113-685, C113-686
Diaphragm Material:	Nitrile, Viton	1 Set:	1x Big Diaphragm, 1x Small Diaphragm, 1x Spring
Fitted Pulse Valve Port Size:	2'', 2 1/2''	Fitted Pulse Valve Model:	SCG353A050, SCG353A051
Highlight:	2'' C113685 Diaphragm Repair Kit , 2.5'' C113686 Diaphragm Repair Kit , ASCO C113685

Product Description:

C113685, C113686, C113-685, C113-686 Diaphragm (Membrane) for ASCO pulse valve SCG353A050, SCG353A051; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Applications:

Industrial Bag-type Dust Removal System

Function: Control compressed air pulse jetting to remove dust accumulation on filter bags.

Industry Cases:

Cement Plant: Tail-end dust collector (exhaust gas temperature <80°C)
Steel Plant: Sintering machine head dust removal (requires pre-cooler)
Wood Processing: Sawdust collection system

Powder Pneumatic Conveying Clearing Blockages

Install pulse valves at blockage points in pipelines to trigger momentary air flow impact using C113825 diaphragms for clearance (e.g., food-grade calcium carbonate, plastic pellet conveying).

Material Silo Arch Breaking Device

Break material arches in coal powder bins/grain silos (operating frequency: ≤30 times/minute).

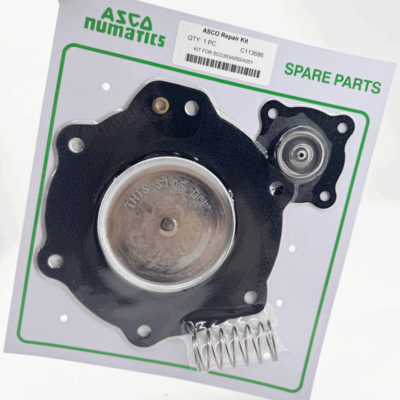

C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories 0

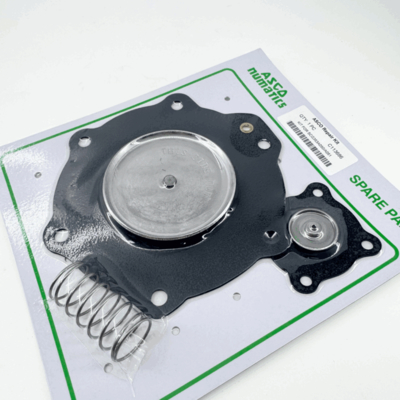

C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories 1

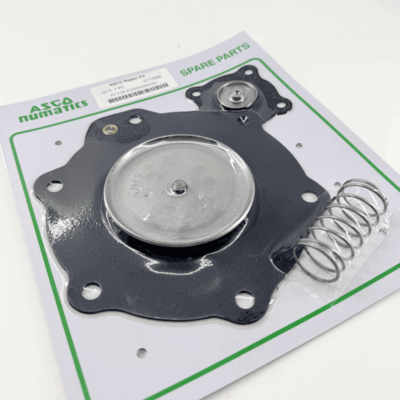

C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories 2

C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories 3

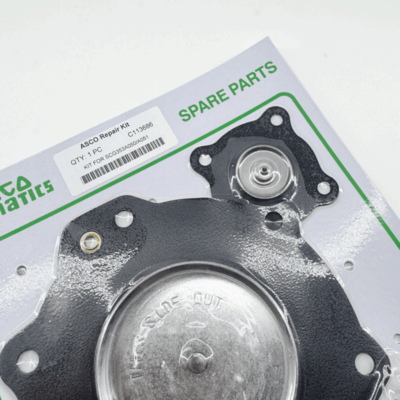

valve. C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories 4

C113686 C140742 ASCO 2.5-inch Diaphragm Repair Kit Pulse Valve SCG353A051 Dust Collector Accessories 5

Ordering Number of Diaphragm For ASCO Pulse Valve:

Valve Port Size	Pulse Valve Model	Diaphragm Model	Diaphragm Material
			(FKM is also available)
3/4''	SCG353A043	C113444	TPE (White), NBR (Black)
1''	SCG353A044
3/4''	SCG353-052
1''	SCG353-053
3/4''	SGG353A043
1''	SGG353A044
3/4''	SGG353-052
1''	SGG353-053
1 1/2''	SCG353A047	C113827	NBR
	SGG353A065
2''	SCG353A050	C113685, C113686	NBR
2 1/2''	SCG353A051
3''	SCXE353.060	C123432, C123433	NBR
	SCG353D060
3/4''	G3530A41	C113443	NBR
1''	G353A042
3/4''	G353-055
1''	G353-056
1 1/2''	G353A045	C113825	NBR
	G353-066
1 1/2''	G353A046	C113826	NBR
	G353A063
2''	G353A048	C113684	NBR
2 1/2''	G353A049

Support and Services:

Our Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Installation guidance and support

- Troubleshooting assistance for any operational issues

- Maintenance recommendations to ensure optimal performance

- Product training and user manuals for easy usage

- Warranty coverage and repair services

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality diaphragm for pulse valves, made of durable material for long-lasting performance.

Package Includes: 1 Pulse Valve Diaphragm

Package Dimensions: 5 x 5 x 1 inches

Shipping Method: Standard Shipping
