GOYEN 1.5-inch K3500 Fluororubber Diaphragm Repair Kit Electromagnetic Pulse Valve CA35T/RCA35T

Product Description:

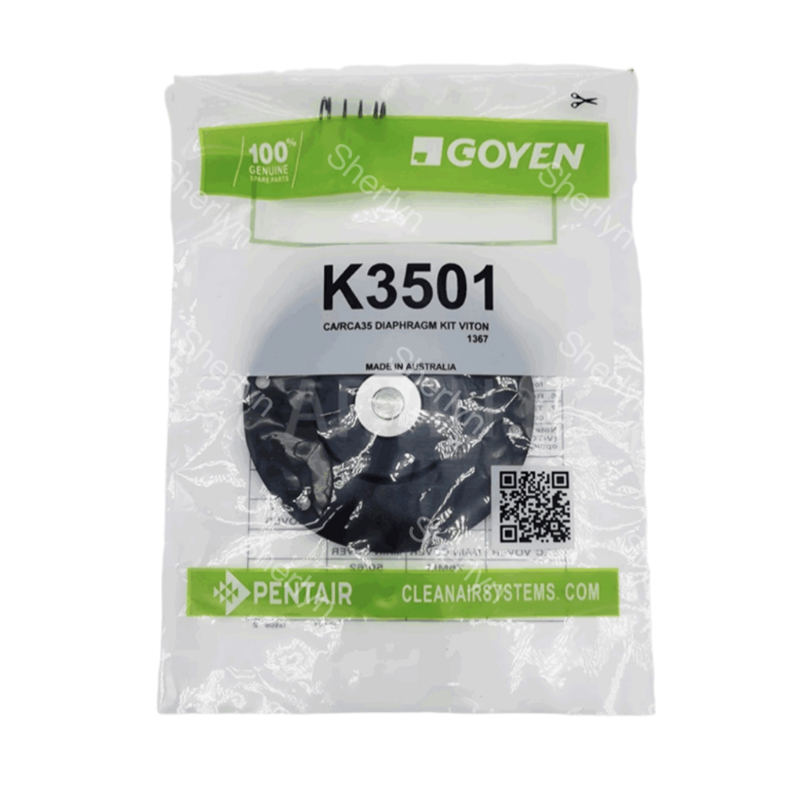

K3500 (M1581), K3501 Diaphragm for Goyen pulse valve CA35T, RCA35T; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Applications:

The industrial dust removal system is designed for various applications such as bag/filter cartridge dust collectors with pulse cleaning technology. These systems are used in environments like cement plant kiln tail dust removal and steel plant blast furnace dust removal.

• Each valve controls 20-50 filter bags to efficiently remove dust particles.
• The membrane operates at a high frequency of ≥ 1 time per minute for effective cleaning.

The system can handle high temperature and corrosive gases, making it suitable for environments like waste incineration flue gas treatment. It utilizes FKM film resistant to temperatures as high as 200°C.

In addition, it can manage acidic and alkaline waste gases commonly found in chemical plants. The EPDM membrane is resistant to corrosion with a pH range of 3-11.

In special medium environments like the food and pharmaceutical industry, the system uses EPDM food-grade film to prevent pollution.

For oil-containing compressed air systems, it features an NBR diaphragm that is oil-resistant, ensuring a secure seal.

In scenarios with high pressure impacts, the system is equipped with a CA62T/CA76T double diaphragm structure capable of withstanding pressures of 0.85MPa.

Moreover, in high humidity environments such as cement raw material grinding, the system prevents condensation and efficiently removes dust.

Support and Services:

The Product Technical Support and Services for the Pulse Valve Diaphragm product include:

- Troubleshooting assistance for installation and operation issues

- Repair and maintenance services to ensure optimal performance

- Product training and guidance for proper usage

- Warranty information and claims processing

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality replacement diaphragm for pulse valves.

Material: Durable rubber

Package Contents: 1 Pulse Valve Diaphragm

Package Dimensions: 5 x 5 x 1 inches

Shipping Method: Standard Shipping

Shipping Time: 3-5 business days
