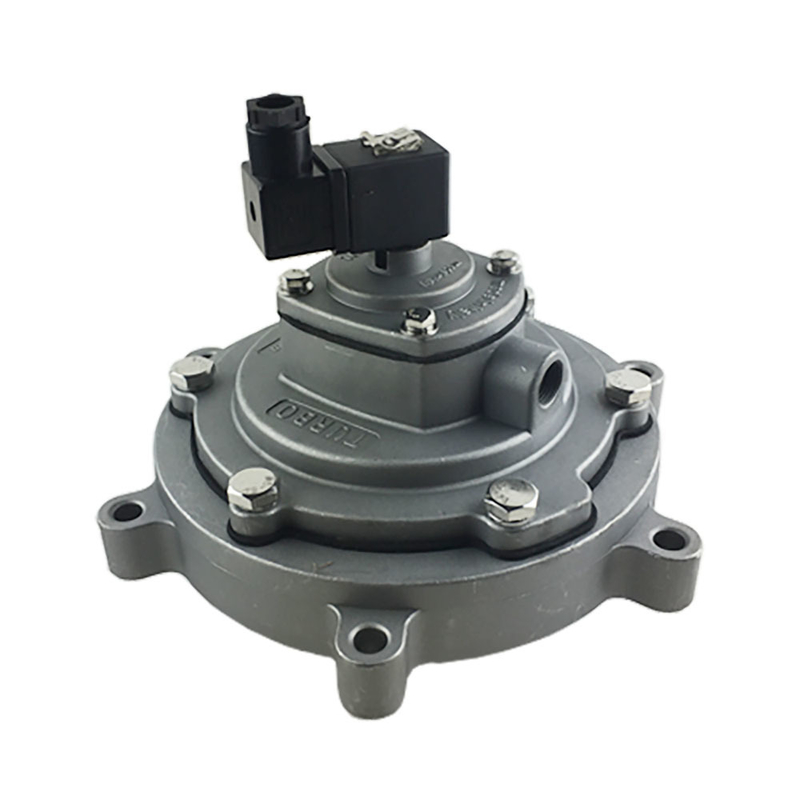

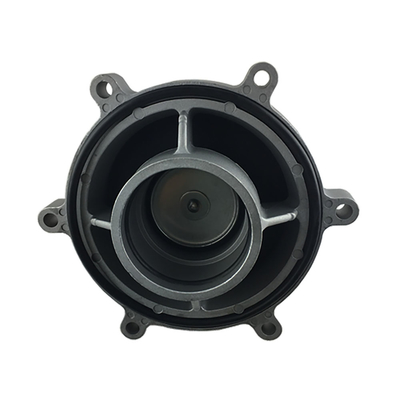

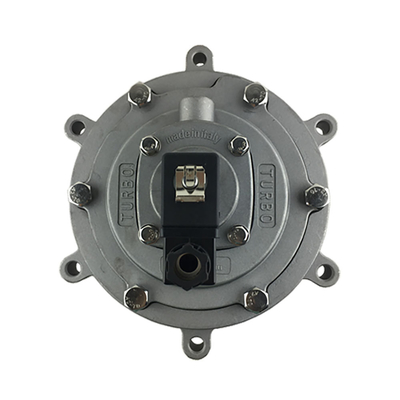

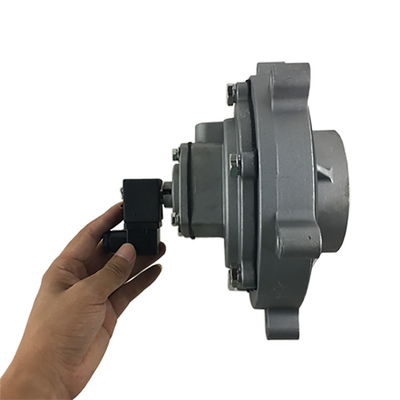

TURBO SQP75-IN Electromagnetic Pulse Valve DN80 Dust Removal SQP75 3-inch submerged electromagnetic pulse valve

Product Description:

Operating Principle
Based on pulse jet technology, it instantly releases compressed air through electromagnetic or pneumatic control to form high-speed pulse airflow, which cleans the filter bags/cartridges and removes attached dust.

Control Methods
Electromagnetic control: The valve port is quickly opened/closed by the solenoid valve receiving electrical signals, with a fast response speed (millisecond level).
Pneumatic control: Driven by a pneumatic control valve, it is suitable for high-pressure and harsh environments (such as high-temperature and corrosive occasions).

Working Pressure
Usually 0.4-0.7MPa (special models can adapt to higher pressures). Pressure stability directly affects the blowing force and ash cleaning effect.

Blowing Volume and Blowing Time
Blowing volume: The amount of compressed air released in a single time (related to the valve port diameter and pressure), which needs to match the size of the filter bag/cartridge.
Blowing time: Generally 0.05-0.2 seconds, which can be adjusted through the control system. If it is too short, the ash cleaning will be incomplete; if it is too long, energy will be wasted.

Response Time
The time from receiving the signal to fully opening is usually ≤50 milliseconds. A fast response can reduce compressed air loss and increase the ash cleaning frequency.

Interface Size
The pipe diameters of the air inlet and air outlet (connected to the blowing pipe). Common specifications include DN20, DN25, DN32, etc. (or inch specifications 1/2", 3/4", etc.), which need to match the system pipeline.

Working Medium
Dry and clean compressed air (oil content ≤0.5ppm, water content ≤-40℃ dew point) to avoid blockage or corrosion of the valve body by impurities.

Working Temperature
Regular models: -10℃~60℃ (electromagnetically controlled).
High-temperature models: Can adapt to above 150℃ (need to use high-temperature resistant sealing materials and valve body materials).

Corrosion Resistance
The valve body material can be cast iron, aluminum alloy (with surface anti-corrosion treatment), or stainless steel (304/316). Stainless steel models are suitable for humid and corrosive environments (such as chemical industry and waste incineration industries).

Protection Level
The protection level of the electromagnetic coil part is usually IP65 (dust-proof and protected against low-pressure water spraying), and some models can reach IP67, adapting to working conditions with more dust.

Valve Body Structure
It adopts a diaphragm structure (the core component is an elastic diaphragm). The valve port is opened/closed through the rapid deformation of the diaphragm, which has the characteristics of good sealing, low wear, and long service life.

Diaphragm Material
Common materials are nitrile rubber (NBR, oil-resistant and wear-resistant) and fluororubber (FKM, high-temperature resistant and chemical corrosion resistant). The selection depends on the working medium and temperature.

Technical Parameters:

Working Principle









Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Demension Drawing

Applications:

Pulse Jet Valves, also known as pneumatic valve pulse valves, are versatile components that find application in various industries and scenarios. The TURBO brand Pulse Jet Valves, originating from China and holding the CE certification, are reliable and high-quality products suitable for a wide range of uses.

These pulse valves are essential in scenarios where there is a need for efficient control of the flow of clean air. With a valve body made of die-cast aluminum alloy, they offer durability and reliable performance even in challenging environments. The IP65 degree of protection ensures that the valves are safeguarded against dust and moisture, making them suitable for both indoor and outdoor applications.

The ambient temperature range of -30°C to +40°C further enhances the adaptability of these Pulse Jet Valves, allowing them to function effectively in various climate conditions. Operating at a pressure range of 0.1 to 0.8MPa, these valves are capable of meeting the requirements of different pneumatic systems.

Whether it is in industrial settings, manufacturing plants, dust collection systems, or other pneumatic applications, these Pulse Jet Valves from TURBO can be seamlessly integrated to enhance operational efficiency. The minimum order quantity of 1 and flexible pricing options through negotiation make these valves accessible to businesses of all scales.

With packaging options including carton or customization as per client requirements, the delivery time of 1-7 work days after payment ensures quick availability of the valves. Customers can choose from payment methods such as T/T, Western Union, and Paypal, adding to the convenience of procurement.

With a supply ability of 5000 pieces per month, businesses can rely on a steady availability of these high-performance Pulse Jet Valves to meet their operational needs effectively. Whether for new installations or replacement of existing valves, the TURBO Pulse Jet Valves offer a reliable solution for controlling airflow in pneumatic systems.
